1. Equipment summary:

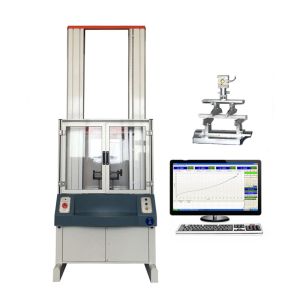

Computer 3 Point Bending Flexural Strength Test Machine is designed by mechanical-electrical integration,
composition of the force-measuring sensor, transmitter, microprocessor, mechanism of load drive ,
computer and color inkjet printer.
High-precision electronic motor can be set to five-speed, the components are connected by
plug-way, Floor-standing models, it is taken account of modern industrial design and ergonomics in
modeling and coating.
Computer Control Pipe Bend Testing Machine can be tested all the materials in stretch, compression, bending,
shear, embedded relay, peeling, tearing, crack, etc,such as rubber, plastics, leather, metal, nylon wire, fabric,
paper, aerospace, packaging, construction, petrochemical, electrical, vehicle.
2.standards:
♣ GB/T4689.20-1996 measuring fastness of leather’s adhesion
♣ QB/T2710-2005 measuring leather’s expansion and the rate of elongation
♣ QB/T2711-2005 measuring tear force of leather
♣ QB/T2712-2005 measuring leather’s strength and stretch of spherical crack test
3. accessories:
A. warranted book within one-year and operating instructions.
B. a group of fixture
C. testing software for tensile machine.
D. a set of brand computer, color printer
4. items can be tested in the Computer Control Bending Flexural Strength Testing Machine:
Common items: ( display data and calculation )
| tensile stress | tensile strength |
| rate of elongation at break | fixed stress |
| rate of stress at break | tear strength |
| the value of force at any point | rate of elongation at any point |
| stress strength | pull-out strength |
| force of adhesion and value of peak | |
5. Technical parameters:
| modle | Three Point Bending Flexural Strength Testing Machine
|
| load cell | 5KN or 1ton and 2 ton option |
| resolution of force | 1/200000 |
| accuracy of force | ≤0.5% |
| Power magnification | 7 automatic switching |
| displacement resolution | 1/1000 |
| accuracy of displacement | ≤0.5% |
| resolution of extensometer | 1/1000 |
| accuracy of extensometer | ≤0.5% |
| Range of speed | 0.01-500mm/min or 1000mm/min(according to the needs of customer) |
| Effective Tensile stroke | 800mm;1000mm;1200mm,(can be increased the height according to customer’s requirement) |
| testing width | 380mm(can be increased the width) |
| power supply | 220V |
| power | about 2KW(depending on different demand of force, using different motor) |
| machine size | about 80*55*220cm(l* w* h) |
| machine weight | About250 kg |
| Units | Kg, N, LB, TON, can be exchanged. |
